Star Light (Williams, 1984): Troubleshooting and System 7 Replacement Boards
Is your Star Light by Williams won't start, resets, has a silent multiball, or no sound? These symptoms are typical of Williams System 7 pinball machines whose original boards (MPU, driver, power supply) are now over 40 years old. The good news: the WillFA7 replacement board, Plug & Play and battery-free, brings your machine back to life.

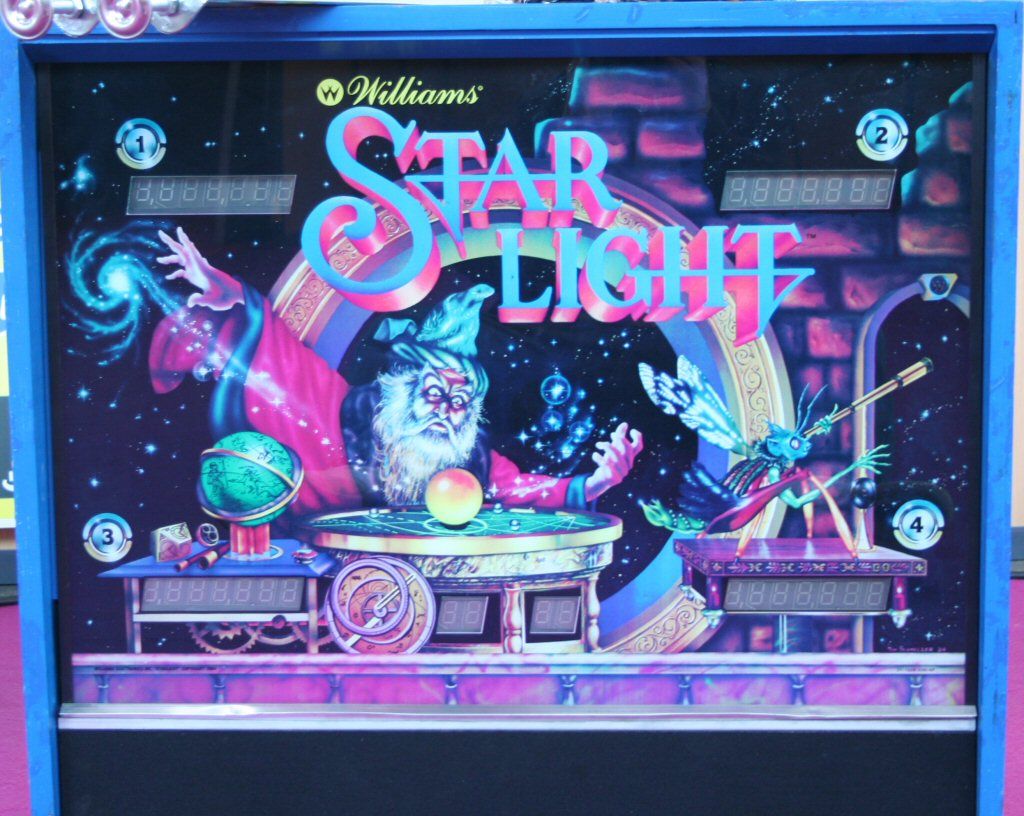

Star Light (Williams, 1984): Overview
Released in 1984, Star Light is the last System 7 pinball from Williams, very rare (about 100 units), with 2-ball multiball.
- Manufacturer: Williams
- Year: 1984
- Electronic system: Williams System 7
- Type: solid state, 2-ball multiball
- Theme: space / stars
Common Issues (System 7)
On Williams System 3 to 7 pinball machines, recurring failures stem from aging: leaking NiCad battery on the MPU (corrosion — the #1 cause of dead boards), worn 40-pin MPU-to-driver connector (the single most common failure point), resets/reboots from 5V drops (power headers and connectors need re-soldering), tired power supply capacitors, displays with missing segments, and solenoid fuse blowing (stuck slingshot or pop bumper).
Star Light-Specific Issues (Forum Reports)
- Non-standard "Blue Flipper" ROMs: due to the limited run, Star Light uses specific EPROMs; the wrong ROMs prevent boot-up.
- Won't start or resets: corroded battery and worn 40-pin connector, typical of System 7.
- 2-ball multiball won't launch: trough and lock switches to clean or replace.
- No sound: System 7 sound board to diagnose (Sound Select signals on the MPU side).
- Missing display segments: displays and power supply to rework.
- Rare parts: only about 100 units; preserve and repair the original parts.
Compatible Replacement Boards for Star Light
- WillFA7 — 2-in-1 board (MPU + Driver) compatible with System 3 to 7 (System 7 included).
The WillFA7 replaces the original MPU and driver board (startup, logic resets, solenoid and multiball control, battery-free memory) and eliminates the fragile 40-pin ribbon cable. Multiball mechanical adjustments, the power supply, and the sound board are addressed separately; our support team can guide you.
Installation is Plug & Play, battery-free, with tutorials and free support. Contact us.
FAQ — Star Light Williams
My Star Light won't boot.
It uses non-standard 'Blue Flipper' EPROMs — the wrong ROMs prevent boot-up. Also check battery corrosion and the 40-pin connector. The WillFA7 replaces MPU and driver, battery-free.
My multiball won't launch.
Clean or replace the trough and lock switches. On the logic side, the WillFA7 stabilizes solenoid control.
Do I need to keep the original battery?
No. The WillFA7 runs without a battery and eliminates the #1 cause of corrosion on System 7 machines.
How long does installation take?
Installation is Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for any signs of battery leakage or corrosion on the MPU of your Star Light; remove the NiCad battery if still present.
- Power supply: check the 5V rail and fuses; re-solder power supply headers and MPU headers if voltage drops or the game resets.
- Connectors: re-pin oxidized Molex connectors, especially the MPU-to-driver connection.
- Solenoids: check solenoid fuses and switches (stuck slingshot) before powering back on.
- Displays: never connect or disconnect a display while powered on; test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; remember the WillFA7 replaces MPU + driver. If needed, contact free support.
