Amazon Hunt (Gottlieb, 1983): Troubleshooting and System 80A Replacement Boards
Your Amazon Hunt by Gottlieb won't start, has no sound, is stuck outside attract mode, or suffers from false slam tilts? These symptoms are typical of Gottlieb System 80A pinball machines whose original boards are now over 40 years old. The good news: the GottFA80_Plus replacement board, Plug & Play and battery-free, brings your machine back to life.
Amazon Hunt (Gottlieb, 1983): Overview

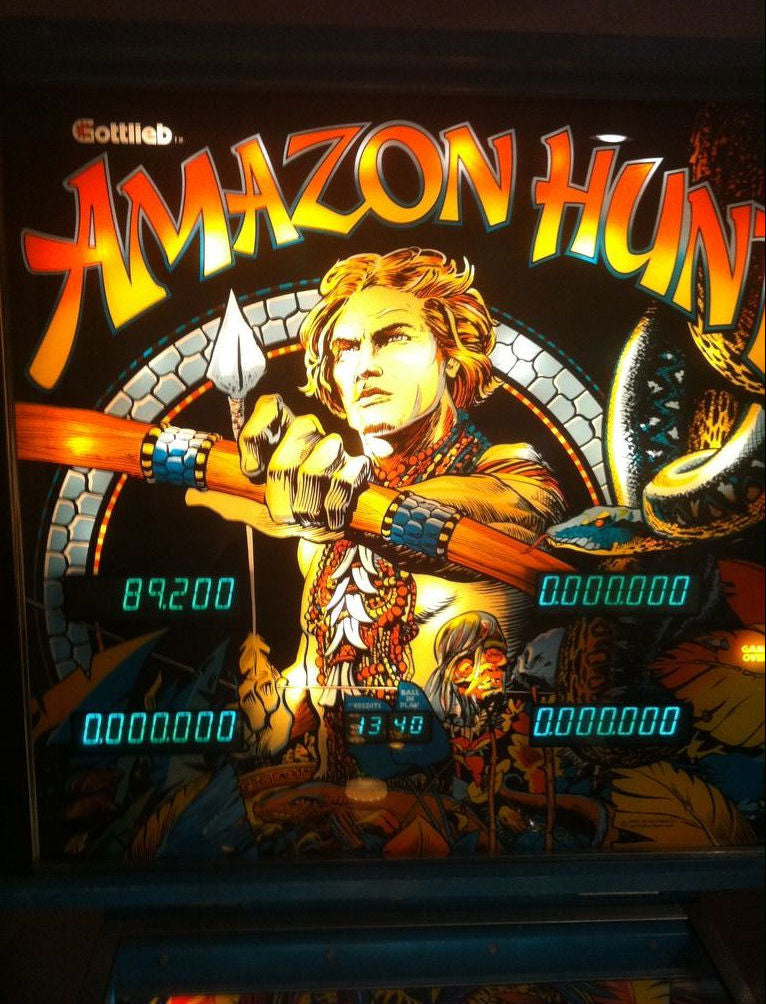

Released in 1983, Amazon Hunt is a well-liked System 80A pinball machine with a treasure-hunt atmosphere set in the Amazon jungle. It uses the Gottlieb System 80A electronics.
- Manufacturer: Gottlieb
- Year: 1983
- Electronic system: Gottlieb System 80A
- Type: solid state
- Theme: adventure / Amazon jungle exploration
Common Issues (System 80A)
All Gottlieb System 80A pinball machines share the same weaknesses as System 80, with added complexity from alphanumeric displays and speech synthesis:
- Leaking NiCad battery: soldered to the MPU board, it corrodes traces and components over time — the #1 cause of dead boards. Remove it immediately.
- Floating grounds: the original ground wiring is undersized and causes resets and erratic behavior. Ground mods are virtually mandatory.
- Edge connectors (the "Gottlieb plague"): oxidized edge connectors cause display faults, missing digits, and intermittent failures. Clean or replace them.
- Corroded connectors: Molex connectors, especially the MPU-to-driver connection, lose contact and require re-pinning.
- Drifting power supply: the 5V and 12V rails sag over time; trim pots and aging capacitors need attention.
- Sound board: leaking capacitors, cold solder joints, and failing ROMs cause weak or absent sound and speech.
Amazon Hunt-Specific Issues (Forum Reports)
- No sound or background sound disappears: often fixed by re-pinning the 12-pin sound board connector and the J5 connector on the driver board.
- Boot stuck outside attract mode, nothing launches: the Z15 chip (7432) that drives switch enables can be faulty and simulate a slam tilt fault.
- False slam tilt: game behaves as if the slam switch is activated when it is not.
- Battery damage on CPU board: remove battery, clean, and add a 100 uF capacitor on the logic input (recommended).
- Diagnostics: tools like NeoDiag80 help isolate faults on these System 80A boards.
Compatible Replacement Boards for Amazon Hunt
- GottFA80_Plus (Light) — all-in-one CPU + driver + power supply board, without sound.
- GottFA80_Plus (Full) — same all-in-one board with integrated sound.
- Gosof — replacement sound board for System 80 and 80A.
- Godri80 — replacement driver board.
- Lisy80 — CPU board + web-based diagnostics.
- GoPOP80 — pop bumper driver board (MA-922).
The GottFA80_Plus replaces the original CPU, driver, and power supply in a single board — battery-free, no corrosion risk. The Gosof replaces the sound board (System 80 and 80A, including speech synthesis). Installation is Plug & Play, with tutorials and free support. Contact us.
FAQ — Amazon Hunt Gottlieb
My Amazon Hunt has no sound.
Re-pin the 12-pin sound board connector and the J5 connector on the driver board. The Gosof replacement sound board is a drop-in fix.
The game is stuck and won't enter attract mode.
The Z15 chip (7432) may be faulty, simulating a slam tilt. Check this IC on the I/O board.
Is the GottFA80_Plus compatible with my Gottlieb System 80A?
Yes. The GottFA80_Plus covers System 80, 80A, and 80B. If in doubt, contact us.
Do I need to keep the original battery?
No. Our boards run without a battery and eliminate the #1 cause of corrosion.
How long does installation take?
Installation is Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for any signs of battery leakage or corrosion on the MPU of your Amazon Hunt; remove the NiCad battery if still present.
- Power supply: measure the 5V rail and verify it reaches the MPU (re-solder the voltage regulator or Q1 if voltage drops).
- Grounds: apply ground mods between the boards (CPU, driver, power supply, sound).
- Connectors: re-pin oxidized Molex connectors, especially the MPU-to-driver board connection.
- Displays: never connect or disconnect a display while powered on; test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; if needed, contact free support.
