Roller Disco (Gottlieb, 1980): Troubleshooting and System 1 Replacement Boards
Your Roller Disco by Gottlieb shows an "EE" error at startup, has erratic displays, dead playfield lamps, or a silent sound board? These symptoms are typical of Gottlieb System 1 pinball machines whose original boards are now over 40 years old. The good news: our battery-free replacement boards, Plug & Play, bring your machine back to life.

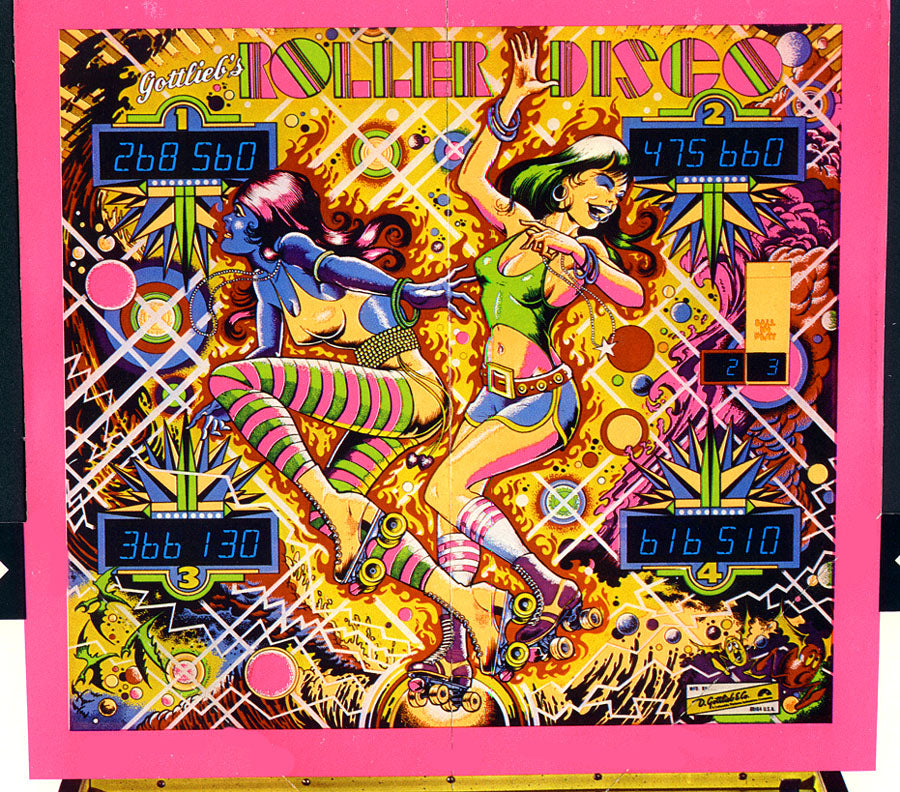

Roller Disco (Gottlieb, 1980): Overview
Released in 1980, Roller Disco is a System 1 machine with a late-70s roller-disco theme and alphanumeric displays. It uses the Gottlieb System 1 electronics.
- Manufacturer: Gottlieb
- Year: 1980
- Electronic system: Gottlieb System 1
- Type: solid state
- Theme: roller skating / disco
Common Issues (System 1)
The Gottlieb System 1 shares a well-known set of weaknesses regardless of the game:
- Leaking battery: the NiCad battery soldered to the MPU board corrodes traces and components over time. This is the #1 failure — remove it immediately.
- Poor grounds: the original ground wiring is undersized and causes resets and erratic behavior (ground mods are virtually mandatory).
- Corroded connectors: Molex connectors, especially the 46-pin MPU-to-driver connection, lose contact and require re-pinning.
- Power supply: unstable 5V (often the legs of transistor Q1 or the R4 trim pot), tired rectifier bridges, and overheating transformers cause crashes.
- Displays: digits that fade, flicker, or freeze at zero. Never connect or disconnect a display while powered on.
Roller Disco-Specific Issues (Forum Reports)
- "EE" error at startup: a classic System 1 error code, often related to the RAM, switches, or an initialization fault.
- Erratic displays: blank screens flashing digits, all zeros or nothing at start, or all segments lit at power-up.
- Playfield lamps off: only a few lamps light; investigate on the driver, connectors, and grounds side.
- Silent sound board: no sound — diagnose on the sound board and power supply side.
- Missing or dead coils: check and replace missing coils; re-pin all connectors.
Compatible Replacement Boards for Roller Disco
Roller Disco runs on the Gottlieb System 1, a platform known for its fragility (leaking battery, weak grounds, corroded connectors). Pinballs Store offers battery-free replacement solutions:
- Gosof — replacement sound board.
For a dedicated System 1 CPU/driver board, contact us: we'll point you to the best solution for your Roller Disco. Plug & Play installation, battery-free, with free support.
FAQ — Roller Disco Gottlieb
My Roller Disco shows an "EE" error.
A classic System 1 code tied to RAM, switches, or initialization. A modern battery-free CPU resolves RAM faults — contact us.
My sound board is silent.
Diagnose the sound board and its power supply. The Gosof replacement sound board is a battery-free option.
Do you have a replacement CPU board for my System 1?
Contact us — we'll point you to the best battery-free solution for your machine. The Gosof already covers the sound board.
Do I need to keep the original battery?
No. The NiCad battery is the #1 cause of corrosion on System 1 — remove it. Modern replacements are battery-free.
How long does installation take?
Our replacement boards are Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for battery leakage or corrosion on the MPU of your Roller Disco; remove the NiCad battery immediately if still present.
- Power supply: measure the 5V rail; if low, re-solder the legs of transistor Q1 and check the R4 trim pot.
- Grounds: apply the System 1 ground mods (ground wires to the CPU and driver boards).
- Connectors: re-pin the oxidized 46-pin MPU-to-driver Molex connector and the connectors under the battery.
- Displays: never connect or disconnect a display while powered on (it can destroy the display driver chips); test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; if needed, contact free support.
