Rocky (Gottlieb, 1982): Troubleshooting and System 80A Replacement Boards
Your Rocky by Gottlieb won't start, has no music or sound, shows 2 missing display digits, or suffers from defective speech? These symptoms are typical of Gottlieb System 80A pinball machines whose original boards are now over 40 years old. The good news: the GottFA80_Plus replacement board, Plug & Play and battery-free, brings your machine back to life.
Rocky (Gottlieb, 1982): Overview

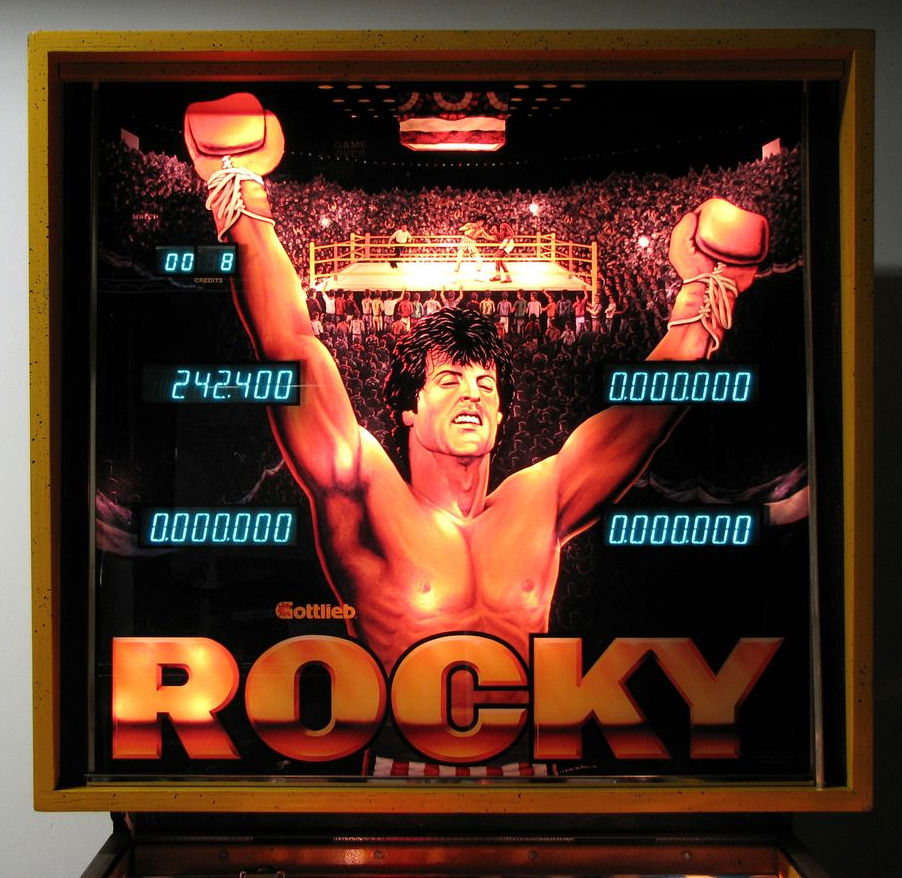

Released in 1982, Rocky is a licensed System 80A pinball machine based on Sylvester Stallone's Rocky franchise. It uses the Gottlieb System 80A electronics.
- Manufacturer: Gottlieb
- Year: 1982
- Electronic system: Gottlieb System 80A
- Type: solid state, licensed title
- Theme: boxing / cinema (Rocky)
Common Issues (System 80A)
All Gottlieb System 80A pinball machines share the same weaknesses as System 80, with added complexity from alphanumeric displays and speech synthesis:
- Leaking NiCad battery: soldered to the MPU board, it corrodes traces and components over time — the #1 cause of dead boards. Remove it immediately.
- Floating grounds: the original ground wiring is undersized and causes resets and erratic behavior. Ground mods are virtually mandatory.
- Edge connectors (the "Gottlieb plague"): oxidized edge connectors cause display faults, missing digits, and intermittent failures. Clean or replace them.
- Corroded connectors: Molex connectors, especially the MPU-to-driver connection, lose contact and require re-pinning.
- Drifting power supply: the 5V and 12V rails sag over time; trim pots and aging capacitors need attention.
- Sound board: leaking capacitors, cold solder joints, and failing ROMs cause weak or absent sound and speech.
Rocky-Specific Issues (Forum Reports)
- No music or sound: recurring symptom; reseat all connectors, check pin continuity, check fuses, and reseat sound ROMs.
- System 80A displays with 2 missing digits: classic display problem related to edge connectors or display drivers.
- Defective speech/voice: sound and speech problems are among the most reported on Rocky.
- Connectors and grounds: oxidized connectors and floating grounds typical of Gottlieb from this era.
- Battery on CPU board: possible corrosion after 40+ years, must be removed.
Compatible Replacement Boards for Rocky
- GottFA80_Plus (Light) — all-in-one CPU + driver + power supply board, without sound.
- GottFA80_Plus (Full) — same all-in-one board with integrated sound.
- Gosof — replacement sound board for System 80 and 80A.
- Godri80 — replacement driver board.
- Lisy80 — CPU board + web-based diagnostics.
- GoPOP80 — pop bumper driver board (MA-922).
The GottFA80_Plus replaces the original CPU, driver, and power supply in a single board — battery-free, no corrosion risk. The Gosof replaces the sound board (System 80 and 80A, including speech synthesis). Installation is Plug & Play, with tutorials and free support. Contact us.
FAQ — Rocky Gottlieb
My Rocky has no sound.
Reseat all connectors, check fuses, and reseat the sound ROMs. The Gosof replacement sound board eliminates these issues.
Two display digits are missing.
Classic edge connector problem on System 80A. Clean the connectors or replace them; a GottFA80_Plus stabilizes the display interface.
Is the GottFA80_Plus compatible with my Gottlieb System 80A?
Yes. The GottFA80_Plus covers System 80, 80A, and 80B. If in doubt, contact us.
Do I need to keep the original battery?
No. Our boards run without a battery and eliminate the #1 cause of corrosion.
How long does installation take?
Installation is Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for any signs of battery leakage or corrosion on the MPU of your Rocky; remove the NiCad battery if still present.
- Power supply: measure the 5V rail and verify it reaches the MPU (re-solder the voltage regulator or Q1 if voltage drops).
- Grounds: apply ground mods between the boards (CPU, driver, power supply, sound).
- Connectors: re-pin oxidized Molex connectors, especially the MPU-to-driver board connection.
- Displays: never connect or disconnect a display while powered on; test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; if needed, contact free support.
