Laser Ball (Williams, 1979): Troubleshooting and System 6 Replacement Boards
Is your Laser Ball by Williams has a missing display segment, a mute digit, distorted sound, or shuts off on the flippers? These symptoms are typical of Williams System 6 pinball machines whose original boards (MPU, driver, power supply) are now over 40 years old. The good news: the WillFA7 replacement board, Plug & Play and battery-free, brings your machine back to life.

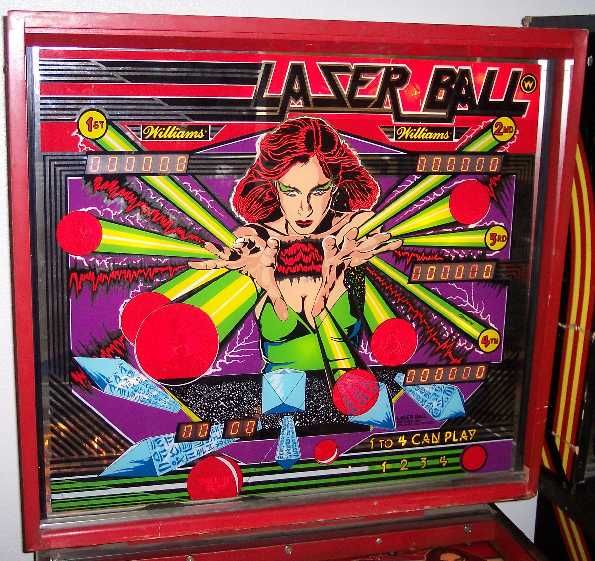

Laser Ball (Williams, 1979): Overview
Released in 1979, Laser Ball is a fast System 6 title.
- Manufacturer: Williams
- Year: 1979
- Electronic system: Williams System 6
- Type: solid state
- Theme: futuristic / laser
Common Issues (System 6)
On Williams System 3 to 7 pinball machines, recurring failures stem from aging: leaking NiCad battery on the MPU (corrosion — the #1 cause of dead boards), worn 40-pin MPU-to-driver connector (the single most common failure point), resets/reboots from 5V drops (power headers and connectors need re-soldering), tired power supply capacitors, displays with missing segments, and solenoid fuse blowing (stuck slingshot or pop bumper).
Laser Ball-Specific Issues (Forum Reports)
- Missing lower segment ("d"): with burnt resistors on the master display board; sometimes just a cold solder joint on a CPU board connector.
- Mute second digit: on some displays, persists even after swapping the slave boards.
- Distorted or absent sound: on the System 6 Type 1 sound board, replace chip IC8 (buffer); distortion appears after several hours of warm-up.
- Shutdown on the flippers: the game shuts off when the flippers are activated and won't reboot.
- No coils at all: bumpers, drop-target reset, ejectors, and slingshots all silent.
Compatible Replacement Boards for Laser Ball
- WillFA7 — 2-in-1 board (MPU + Driver) compatible with System 3 to 7 (System 6 included).
The WillFA7 replaces the original MPU and driver board (startup, logic resets, solenoid control, battery-free memory) and eliminates the fragile 40-pin ribbon cable. Purely power-supply issues (5V/12V, capacitors, power connectors) and the sound board are addressed separately; our support team can guide you.
Installation is Plug & Play, battery-free, with tutorials and free support. Contact us.
FAQ — Laser Ball Williams
My game shuts off when I hit the flippers.
A power/coil fault causing shutdown. Check the flipper coils and power supply; the WillFA7 replaces the driver stage and stabilizes power draw.
My sound is distorted after warming up.
On the Type 1 sound board, replace buffer chip IC8. This is a sound-board fix, separate from the WillFA7.
Do I need to keep the original battery?
No. The WillFA7 runs without a battery and eliminates the #1 cause of corrosion on System 6 machines.
How long does installation take?
Installation is Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for any signs of battery leakage or corrosion on the MPU of your Laser Ball; remove the NiCad battery if still present.
- Power supply: check the 5V rail and fuses; re-solder power supply headers and MPU headers if voltage drops or the game resets.
- Connectors: re-pin oxidized Molex connectors, especially the MPU-to-driver connection.
- Solenoids: check solenoid fuses and switches (stuck slingshot) before powering back on.
- Displays: never connect or disconnect a display while powered on; test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; remember the WillFA7 replaces MPU + driver. If needed, contact free support.
