Asteroid Annie and the Aliens (Gottlieb, 1980): Troubleshooting and System 1 Replacement Boards
Your Asteroid Annie and the Aliens by Gottlieb won't boot, loses its 5101 RAM settings, has battery corrosion, or erratic displays? These symptoms are typical of Gottlieb System 1 pinball machines whose original boards are now over 40 years old. The good news: our battery-free replacement boards, Plug & Play, bring your machine back to life.
Asteroid Annie and the Aliens (Gottlieb, 1980): Overview

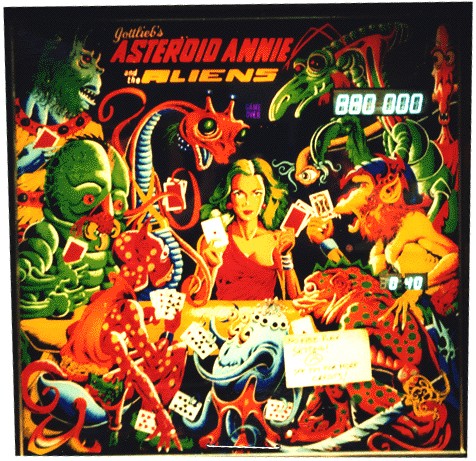

Released in 1980, Asteroid Annie and the Aliens is the last game of the System 1 series and a rare title (about 211 units), with alphanumeric displays. It uses the Gottlieb System 1 electronics.
- Manufacturer: Gottlieb
- Year: 1980
- Electronic system: Gottlieb System 1
- Type: solid state
- Theme: science fiction
Common Issues (System 1)
The Gottlieb System 1 shares a well-known set of weaknesses regardless of the game:
- Leaking battery: the NiCad battery soldered to the MPU board corrodes traces and components over time. This is the #1 failure — remove it immediately.
- Poor grounds: the original ground wiring is undersized and causes resets and erratic behavior (ground mods are virtually mandatory).
- Corroded connectors: Molex connectors, especially the 46-pin MPU-to-driver connection, lose contact and require re-pinning.
- Power supply: unstable 5V (often the legs of transistor Q1 or the R4 trim pot), tired rectifier bridges, and overheating transformers cause crashes.
- Displays: digits that fade, flicker, or freeze at zero. Never connect or disconnect a display while powered on.
Asteroid Annie and the Aliens-Specific Issues (Forum Reports)
- 5101 RAM and reset circuit: the most frequent System 1 board failures, especially noted on this game (loss of settings, refusal to boot).
- Battery corrosion: the MPU NiCad battery leaks and eats away the surrounding area — inspect and remove as a priority.
- Late Driver board: produced in 1980, it should have a Driver board with protection diodes; check their presence and condition.
- Erratic displays: all zeros, flickering, or garbage characters — look at the power supply and connectors A1J2/A1J3.
- Connectors and grounds: re-pin the connectors and apply the ground mods.
Compatible Replacement Boards for Asteroid Annie and the Aliens
Asteroid Annie and the Aliens runs on the Gottlieb System 1, a platform known for its fragility (leaking battery, weak grounds, corroded connectors). Pinballs Store offers battery-free replacement solutions:
- Gosof — replacement sound board.
For a dedicated System 1 CPU/driver board, contact us: we'll point you to the best solution for your Asteroid Annie and the Aliens. Plug & Play installation, battery-free, with free support.
FAQ — Asteroid Annie and the Aliens Gottlieb
My Asteroid Annie loses its settings or won't boot.
The 5101 RAM and reset circuit are the usual System 1 culprits, worsened by battery corrosion. A modern battery-free CPU eliminates the problem — contact us.
How rare is this machine?
Very — only about 211 units were produced, and it was the last System 1 game. Original parts are scarce, so a modern replacement board is valuable.
Do you have a replacement CPU board for my System 1?
Contact us — we'll point you to the best battery-free solution for your machine. The Gosof already covers the sound board.
Do I need to keep the original battery?
No. The NiCad battery is the #1 cause of corrosion on System 1 — remove it. Modern replacements are battery-free.
How long does installation take?
Our replacement boards are Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for battery leakage or corrosion on the MPU of your Asteroid Annie and the Aliens; remove the NiCad battery immediately if still present.
- Power supply: measure the 5V rail; if low, re-solder the legs of transistor Q1 and check the R4 trim pot.
- Grounds: apply the System 1 ground mods (ground wires to the CPU and driver boards).
- Connectors: re-pin the oxidized 46-pin MPU-to-driver Molex connector and the connectors under the battery.
- Displays: never connect or disconnect a display while powered on (it can destroy the display driver chips); test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; if needed, contact free support.
