Amazon Hunt II (Gottlieb, 1987): Troubleshooting and System 80B Replacement Boards
Your Amazon Hunt II by Gottlieb has background sound that stops, audio faults, bad inter-board contacts, or an unstable boot? These symptoms are typical of Gottlieb System 80B pinball machines whose original boards are now over 40 years old. The good news: our battery-free replacement boards, Plug & Play, bring your machine back to life.

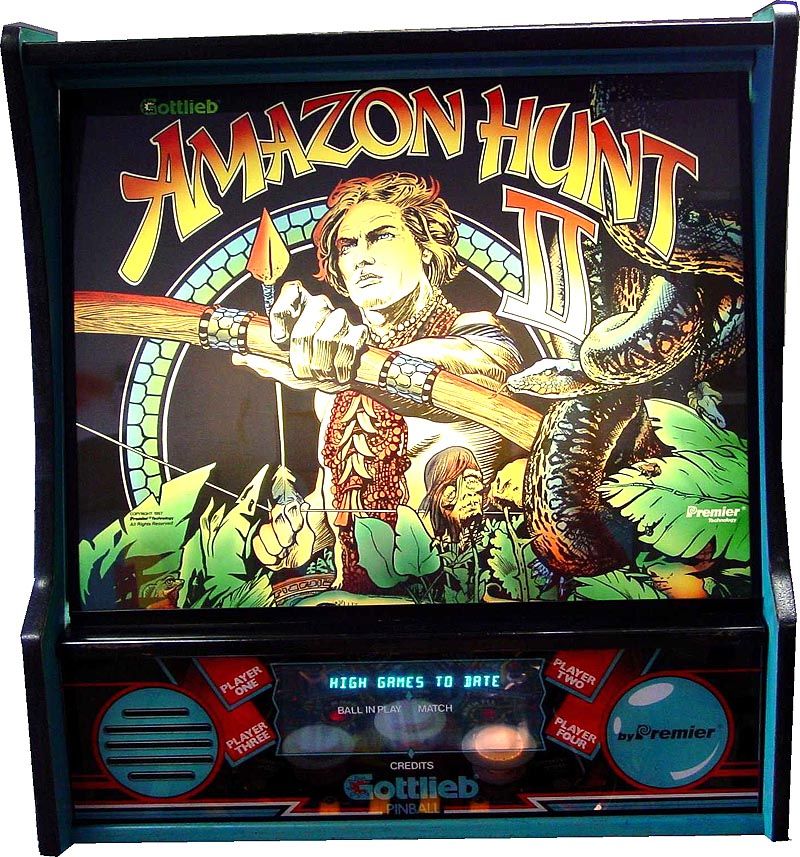

Amazon Hunt II (Gottlieb, 1987): Overview
Released in 1987, Amazon Hunt II is the System 80B follow-up to 1983's Amazon Hunt, with alphanumeric displays. It uses the Gottlieb System 80B electronics.
- Manufacturer: Gottlieb
- Year: 1987
- Electronic system: Gottlieb System 80B
- Type: solid state
- Theme: adventure in the Amazon jungle
Common Issues (System 80B)
System 80B machines use alphanumeric displays and a 5101 RAM-based MPU backed by a battery. Recurring failures include: leaking battery on the MPU (corrosion and loss of the 5101 memory), unstable power supply (the original trim pot struggles to maintain 5V and 12V), cracked solder joints (especially on the CPU daughter card and the LM338K regulator), inter-board connectors needing re-pinning, poor grounds (ground mods are essential), dead displays if even a single data bit fails between the MPU and display, and startup disrupted by the fluorescent tube starter in the backbox.
Amazon Hunt II-Specific Issues (Forum Reports)
- Background sound stops: the ambient sound cuts out mid-game while the game keeps working; re-crimping the 12-pin connector on the sound board and J5 on the Driver board often fixes the fault.
- Sound and speech board: on some versions the speech section is not fitted; frequent audio faults (bad contacts, components).
- Ground rework: like all System 80, major ground work is often needed for a stable boot.
- ROM versions: be careful about ROM versions between Amazon Hunt II and III when replacing a CPU.
- Inter-board connectors: bad contacts between boards, to be re-crimped.
Compatible Replacement Boards for Amazon Hunt II
- GottFA80_Plus (Light) — all-in-one CPU + driver + power supply board, without sound.
- GottFA80_Plus (Full) — same all-in-one board with integrated sound.
- Gosof — replacement sound board for System 80 and 80A.
- Godri80 — replacement driver board.
- Lisy80 — CPU board + web-based diagnostics.
- GoPOP80 — pop bumper driver board (MA-922).
System 80B note: we recommend the GottFA80_Plus Light — 80B is covered on the CPU/MPU side. On the audio side, support is currently limited to select titles (Bounty Hunter, Chicago Cubs Triple Play, Tag-Team Pinball); for other System 80B games, keep and repair the original sound board and contact us (an audio solution is in development).
The GottFA80_Plus replaces the original CPU, driver, and power supply in a single board — battery-free, no corrosion risk, and no more drifting trim pot. Installation is Plug & Play, with tutorials and free support. Contact us.
FAQ — Amazon Hunt II Gottlieb
My background sound cuts out mid-game.
Re-crimp the 12-pin connector on the sound board and J5 on the Driver board. The Gosof can replace the sound board — contact us for 80B audio.
I'm replacing the CPU — do ROM versions matter?
Yes. Be careful about ROM versions between Amazon Hunt II and III. A Lisy80 or GottFA80_Plus handles the correct game code — contact us.
Is the GottFA80_Plus compatible with my Gottlieb System 80B?
Yes. The GottFA80_Plus covers System 80, 80A, and 80B. If in doubt, contact us.
Do I need to keep the original battery?
No. Our boards run without a battery and eliminate the #1 cause of corrosion.
How long does installation take?
Installation is Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for any signs of battery leakage or corrosion on the MPU of your Amazon Hunt II; remove the NiCad battery if still present.
- Power supply: measure the 5V rail and verify it reaches the MPU (replace the drifting trim pot or re-solder the regulator if voltage sags).
- Grounds: apply ground mods between the boards (CPU, driver, power supply, sound).
- Connectors: re-pin oxidized Molex and edge connectors, especially the MPU-to-driver connection.
- Displays: never connect or disconnect a display while powered on; test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; if needed, contact free support.
