Spirit (Gottlieb, 1982): Troubleshooting and System 80A Replacement Boards
Your Spirit by Gottlieb won't start, has a seized motor, stand-up targets not scoring, or suffers from distorted sound? These symptoms are typical of Gottlieb System 80A pinball machines whose original boards are now over 40 years old. The good news: the GottFA80_Plus replacement board, Plug & Play and battery-free, brings your machine back to life.
Spirit (Gottlieb, 1982): Overview

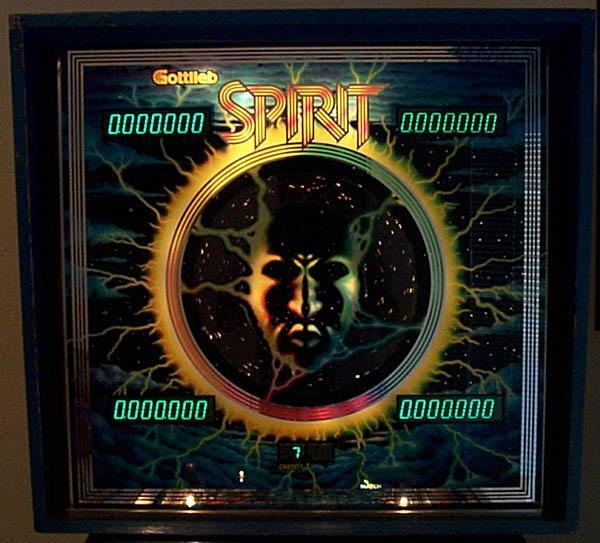

Released in 1982, Spirit is a System 80A pinball machine with a fast playfield and supernatural mystery theme. It uses the Gottlieb System 80A electronics.
- Manufacturer: Gottlieb
- Year: 1982
- Electronic system: Gottlieb System 80A
- Type: solid state
- Theme: supernatural / mystery
Common Issues (System 80A)
All Gottlieb System 80A pinball machines share the same weaknesses as System 80, with added complexity from alphanumeric displays and speech synthesis:
- Leaking NiCad battery: soldered to the MPU board, it corrodes traces and components over time — the #1 cause of dead boards. Remove it immediately.
- Floating grounds: the original ground wiring is undersized and causes resets and erratic behavior. Ground mods are virtually mandatory.
- Edge connectors (the "Gottlieb plague"): oxidized edge connectors cause display faults, missing digits, and intermittent failures. Clean or replace them.
- Corroded connectors: Molex connectors, especially the MPU-to-driver connection, lose contact and require re-pinning.
- Drifting power supply: the 5V and 12V rails sag over time; trim pots and aging capacitors need attention.
- Sound board: leaking capacitors, cold solder joints, and failing ROMs cause weak or absent sound and speech.
Spirit-Specific Issues (Forum Reports)
- Seized motor (dead gear motor): can be freed with 3-in-1 oil; otherwise requires reconditioning or a NOS motor, which has become expensive.
- Stand-up targets not scoring: targets register physical contact but are not recognized by the software (no score).
- Unable to enter test mode: test button unresponsive on some units.
- Distorted sound: distortion linked to air volume in the cabinet; some owners install speakers suited for sealed enclosures.
- Connectors and grounds: oxidation and floating grounds typical of Gottlieb from this era.
Compatible Replacement Boards for Spirit
- GottFA80_Plus (Light) — all-in-one CPU + driver + power supply board, without sound.
- GottFA80_Plus (Full) — same all-in-one board with integrated sound.
- Gosof — replacement sound board for System 80 and 80A.
- Godri80 — replacement driver board.
- Lisy80 — CPU board + web-based diagnostics.
- GoPOP80 — pop bumper driver board (MA-922).
The GottFA80_Plus replaces the original CPU, driver, and power supply in a single board — battery-free, no corrosion risk. The Gosof replaces the sound board (System 80 and 80A, including speech synthesis). Installation is Plug & Play, with tutorials and free support. Contact us.
FAQ — Spirit Gottlieb
The gear motor is seized.
Try 3-in-1 oil to free it. If it remains stuck, reconditioning or a NOS motor is needed — this is a mechanical issue, not board-related.
Stand-up targets register but don't score.
The software is not reading the switches. Check the switch matrix connections and the MPU; a GottFA80_Plus replacement stabilizes the logic.
Is the GottFA80_Plus compatible with my Gottlieb System 80A?
Yes. The GottFA80_Plus covers System 80, 80A, and 80B. If in doubt, contact us.
Do I need to keep the original battery?
No. Our boards run without a battery and eliminate the #1 cause of corrosion.
How long does installation take?
Installation is Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for any signs of battery leakage or corrosion on the MPU of your Spirit; remove the NiCad battery if still present.
- Power supply: measure the 5V rail and verify it reaches the MPU (re-solder the voltage regulator or Q1 if voltage drops).
- Grounds: apply ground mods between the boards (CPU, driver, power supply, sound).
- Connectors: re-pin oxidized Molex connectors, especially the MPU-to-driver board connection.
- Displays: never connect or disconnect a display while powered on; test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; if needed, contact free support.
