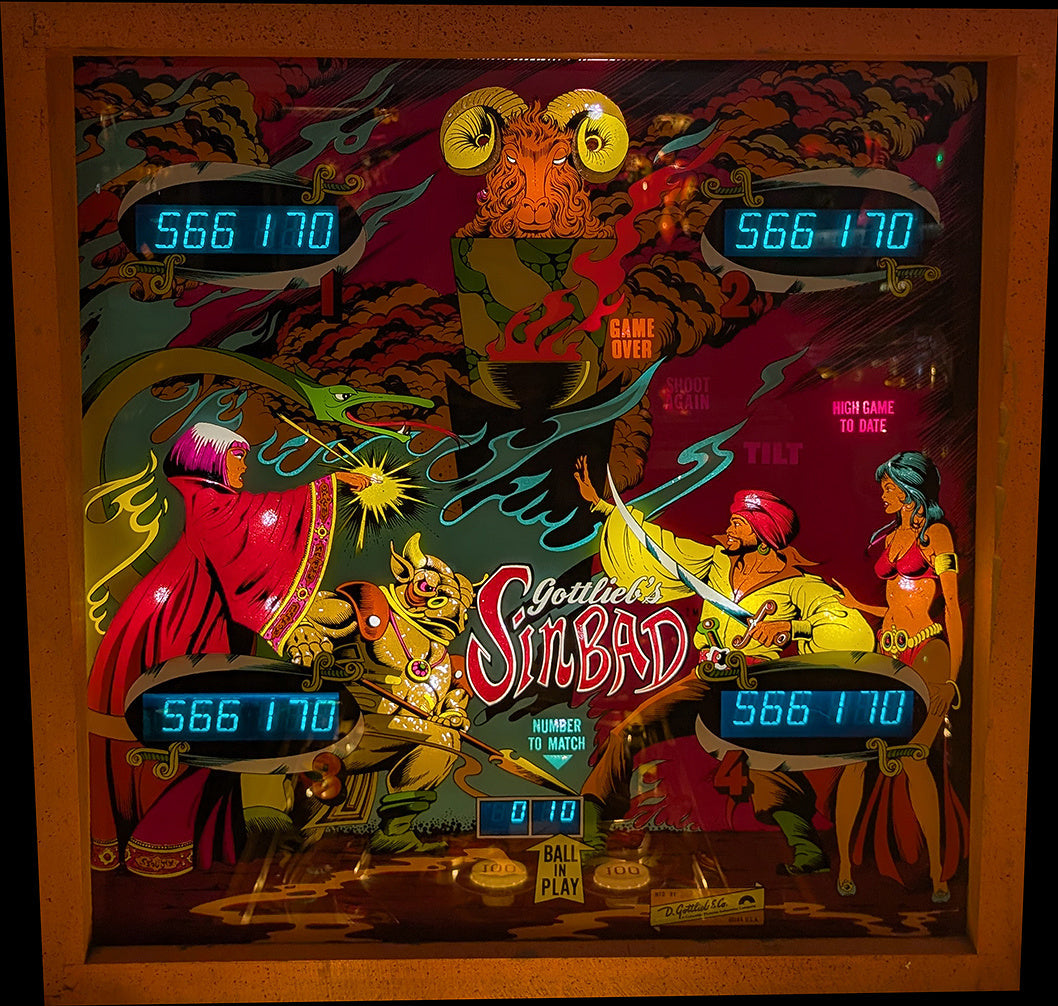

Sinbad (Gottlieb, 1978): Troubleshooting and System 1 Replacement Boards
Your Sinbad by Gottlieb shows an incorrect 3rd-player display, has a drop-target bank that won't reset, erratic controlled lamps, or random resets? These symptoms are typical of Gottlieb System 1 pinball machines whose original boards are now over 40 years old. The good news: our battery-free replacement boards, Plug & Play, bring your machine back to life.
Sinbad (Gottlieb, 1978): Overview
Released in 1978, Sinbad is a System 1 machine themed on Sinbad the sailor and the One Thousand and One Nights, with drop-target banks and alphanumeric displays. It uses the Gottlieb System 1 electronics.
- Manufacturer: Gottlieb
- Year: 1978
- Electronic system: Gottlieb System 1
- Type: solid state, drop targets
- Theme: adventure / Sinbad the sailor (Arabian Nights)
Common Issues (System 1)
The Gottlieb System 1 shares a well-known set of weaknesses regardless of the game:
- Leaking battery: the NiCad battery soldered to the MPU board corrodes traces and components over time. This is the #1 failure — remove it immediately.
- Poor grounds: the original ground wiring is undersized and causes resets and erratic behavior (ground mods are virtually mandatory).
- Corroded connectors: Molex connectors, especially the 46-pin MPU-to-driver connection, lose contact and require re-pinning.
- Power supply: unstable 5V (often the legs of transistor Q1 or the R4 trim pot), tired rectifier bridges, and overheating transformers cause crashes.
- Displays: digits that fade, flicker, or freeze at zero. Never connect or disconnect a display while powered on.
Sinbad-Specific Issues (Forum Reports)
- Incorrect 3rd-player display: a factory wiring error on connector 3A4J1, where pins 2 and 8 were swapped at the factory — a classic Sinbad fault.
- Drop-target bank fails to reset (often the red bank): check the reset coil's diode and the corresponding transistor on the Driver board.
- Erratic controlled lamps: driven lamps that won't light, usually on the Driver side or a connector.
- Grounds and resets: without the ground mods (CPU, Driver, power supply, sound), the game crashes or reboots on its own.
- Worn connectors: corroded MPU-to-Driver Molex connectors cause intermittent faults; re-pinning is required.
Compatible Replacement Boards for Sinbad
Sinbad runs on the Gottlieb System 1, a platform known for its fragility (leaking battery, weak grounds, corroded connectors). Pinballs Store offers battery-free replacement solutions:
- Gosof — replacement sound board.
For a dedicated System 1 CPU/driver board, contact us: we'll point you to the best solution for your Sinbad. Plug & Play installation, battery-free, with free support.
FAQ — Sinbad Gottlieb
My 3rd-player display is wrong.
A factory wiring error on connector 3A4J1 (pins 2 and 8 swapped) — a classic Sinbad fault. Correct the wiring; a modern battery-free CPU stabilizes the displays — contact us.
My drop-target bank won't reset.
Check the reset coil's diode and the corresponding Driver-board transistor. Re-pin the connectors and apply ground mods.
Do you have a replacement CPU board for my System 1?
Contact us — we'll point you to the best battery-free solution for your machine. The Gosof already covers the sound board.
Do I need to keep the original battery?
No. The NiCad battery is the #1 cause of corrosion on System 1 — remove it. Modern replacements are battery-free.
How long does installation take?
Our replacement boards are Plug & Play: just a few minutes, no soldering required, with tutorials and free support.
Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.
Step-by-Step Diagnostics
- With power off, visual inspection: look for battery leakage or corrosion on the MPU of your Sinbad; remove the NiCad battery immediately if still present.
- Power supply: measure the 5V rail; if low, re-solder the legs of transistor Q1 and check the R4 trim pot.
- Grounds: apply the System 1 ground mods (ground wires to the CPU and driver boards).
- Connectors: re-pin the oxidized 46-pin MPU-to-driver Molex connector and the connectors under the battery.
- Displays: never connect or disconnect a display while powered on (it can destroy the display driver chips); test with a known good display.
- Final test: verify startup, credits, solenoids, and displays; if needed, contact free support.
