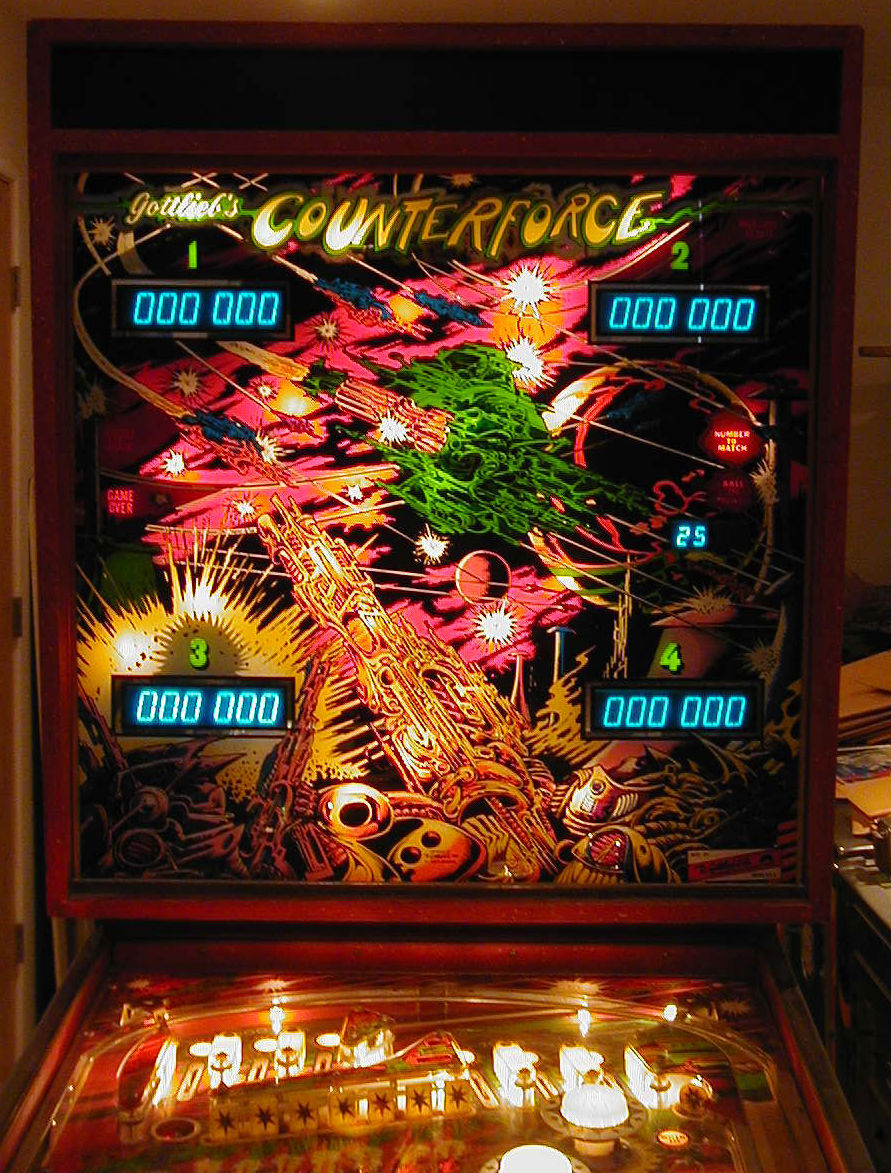

Counterforce pinball machine

Counterforce (Gottlieb, 1980): Troubleshooting and System 80 Replacement Boards

Is your Counterforce pinball machine by Gottlieb (1980) failing to boot, showing "0" on the credit display, experiencing stuck pop bumpers, or dim lamps? On this Gottlieb System 80 pinball machine, the cause is almost always the CPU board (MPU), the driver board, the connectors, or the grounds. Here is the essential information and the compatible System 80 replacement boards.

Counterforce (Gottlieb, 1980): Overview

Counterforce is a Gottlieb electronic pinball machine from 1980 on the Gottlieb System 80 platform, with a space battle theme — one of the first System 80 machines.

  • Manufacturer: Gottlieb
  • Year: 1980
  • Electronics platform: Gottlieb System 80
  • Type: solid state
  • Theme: space, science fiction, battle
Gottlieb System 80 boards — Counterforce
The CPU and Driver boards of the Gottlieb System 80.

Common Issues with the Counterforce (System 80)

Like all Gottlieb System 80 machines: aging CPU/Driver boards, crashes and resets, slam tilt, faulty displays, unreliable grounds and connectors, leaking battery.

Battery corrosion on Gottlieb System 80 board — Counterforce
Typical corrosion from a leaking battery on System 80: must be addressed first.

Issues Specific to Counterforce (Forum Reports)

  • Intermittent boot failure, "0" on credit display with the shoot again lamp stuck on: often a RIOT pulling IRQ low (all 3 IRQ sources are tied together on Gottlieb boards, making isolation difficult).
  • Pop bumpers that stay energized/stuck even after replacing fuses (transistors test OK).
  • Controlled lamps (green multiplier lamps) very dim at startup.
  • Worn connectors (the recurring System 80 issue) — clean with an eraser + apply ground mods.

Boot failures, driver issues (pop bumpers, lamps), and resets are resolved by replacing the CPU/Driver boards with the GottFA80_Plus; the Lisy80 and its diagnostics help locate any remaining faults.

Compatible Replacement Boards for Counterforce

GottFA80_Plus board for Gottlieb System 80 — Counterforce
The GottFA80_Plus: all-in-one board (CPU + Driver + power supply) with no battery.

Plug & Play installation, no battery required, free tutorials and support. Contact us if in doubt.

FAQ — Counterforce Gottlieb

My Counterforce shows "0" and won't start?
Typical of a CPU issue (RIOT/IRQ) or connector problems on System 80. A replacement board (GottFA80_Plus or Lisy80) permanently resolves the problem.

The pop bumpers stay stuck?
Solenoid driver circuits on the driver board; the GottFA80_Plus or the Godri80 + GoPOP80 restore the driver circuits to new condition.

Should I do the ground mods?
Yes on System 80 — or switch to the GottFA80_Plus which rebuilds the power supply and driver circuits.

Do I need to replace the battery?
Our boards operate without a battery: no more corrosion.

How long does it take to install a replacement board?
Installation is Plug & Play: just a few minutes, no soldering required, with free tutorials and support.

Does a battery-free board retain settings and high scores?
Yes. Modern replacement boards use NVRAM: no battery, no corrosion, and settings are preserved when powered off.

Step-by-Step Diagnostics

  1. Power off, visual inspection: look for any battery leakage or corrosion on the MPU of your Counterforce; remove the NiCad battery if still present.
  2. Power supply: measure the 5V rail and verify it reaches the MPU (reflow the regulator or Q1 solder joints if the voltage drops).
  3. Grounds: apply ground mods between boards (CPU, Driver, power supply, sound).
  4. Connectors: re-pin oxidized Molex connectors, especially the MPU-to-Driver link.
  5. Displays: never connect or disconnect a display while powered on; test with a known-good display.
  6. Final test: check startup, credits, solenoids, and displays; contact free support if needed.
