GottFA80_Plus V2 Full Integrated Sound Board: Compatibility, Settings, and Audio Testing (Gottlieb System 80 / 80A / 80B)

Gottlieb System 80, System 80A, and System 80B pinball machines are loved for their gameplay, but their original Gottlieb sound boards often become unreliable after 40 years — random failures, missing speech, unbalanced volume, and so on. The GottFA80_Plus V2 Full integrates a modern sound board directly onto a single board, while keeping the authenticity of the original sounds intact.

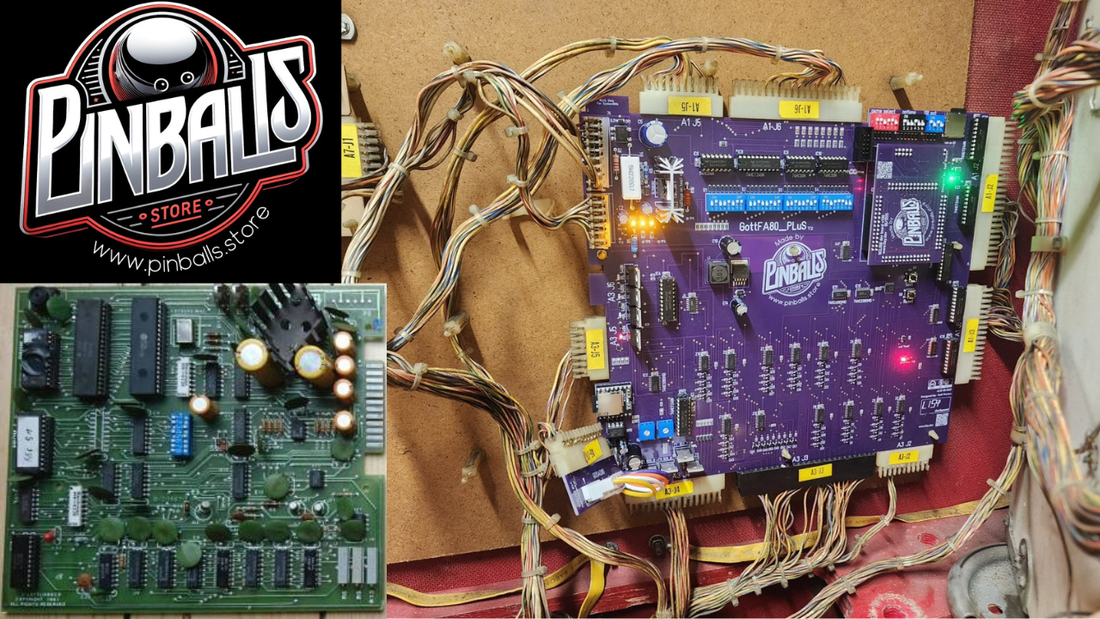

A Complete Plug-and-Play Board (CPU + Driver + Power Supply + Sound)

With the GottFA80_Plus V2 Full, you replace most of the original electronics with a reliable, modern, and 100% plug-and-play solution, without modifying your machine.

• Integrated CPU: system compatibility preserved
• Integrated sound board: sounds and speech identical to the original
• Integrated driver: original behavior preserved
• Integrated power supply: a clean, stable solution

Authenticity Preserved: ROMs, Audio Modes, and DIP Settings

The board replaces the CPU and the original sound board while strictly preserving:

• the game's original ROMs
• the original sound and speech modes (including speech)
• the DIP settings specific to each machine

Whether your machine uses an MA55, MA216 (speech), MA309, or MA490 sound board, the audio behavior is preserved exactly.

Audio Test: Settings and Verification Procedure

Before testing, configure the audio options correctly to faithfully reproduce the original board's behavior.

Step 1 — Configuring the DIP Switches (SB Opt / S3)

The integrated sound board's options are set via the SB Opt DIP switch block.
⚠️ Important: these settings depend on the game. For exact values, consult the corresponding Gottlieb manual.

DIP Correspondence (General Rule)

• MA55 and MA490 sound boards: DIPs 1 and 2 of the SB Opt block correspond to DIPs 1 and 2 on the original sound board
• MA216 and MA309 sound boards: DIPs 1 through 4 of the SB Opt block correspond to DIPs 3 through 6 on the original sound board

Built-In Audio Test ("Test" Button)

Pressing the board's "Test" button:

• on a speech-capable sound board, the Mini Player plays: "Tilt tilt tilt"
• on other sound boards, it plays: "oohhhhh"

This test lets you immediately confirm:

• the audio section is working correctly
• the sound signal and speech are present

Gottlieb Sound Board Compatibility

MA55 — Soundboard

Panthera, Spider-Man, Circus, Counterforce, Star Race, James Bond, Time Line, Force II, Pink Panther, Eclipse

Export versions — sound only: Volcano, Black Hole, Devil's Dare

MA216 — Sound Board with Speech

Mars, Volcano, Black Hole, Devil's Dare, Rocky, Striker, Q*Bert's Quest, Caveman

MA309 — Soundboard

Haunted House, Spirit, Punk!, Krull, Goin' Nuts, Super Orbit, Amazon Hunt, Royal Flush Deluxe

MA490 — Soundboard

System 80A: Rack 'Em Up, Ready...Aim...Fire!, Jacks To Open, Touchdown, Alien Star, The Games, El Dorado City of Gold, Ice Fever

System 80B: Bounty Hunter, Chicago Cubs Triple Play, Tag-Team Pinball

Audio Settings and Sound Section Components

Adjusting Volume (Sound vs. Speech)

• 🟥 Potentiometer — Speech volume: adjust the level of speech if it's too quiet.
• 🟩 Potentiometer — Sound volume: adjust the level of non-speech sounds (effects, music).

⚠️ Note: overall volume is mostly controlled by the potentiometer located inside the coin door. Only use the board-level controls to balance the level between sound effects and speech.

🟨 Audio Amplifier (TDA7267)

If you have no sound at all even though the sound section's fuse is intact, the amplifier may be at fault.
It can be replaced with a TDA7267 (an equivalent part), widely available for just a few dollars.

⬜ Mini Player (Speech)

The Mini Player holds the speech audio files. It lights up blue when a speech clip plays, giving you a quick way to confirm it's working during testing.

Connecting the Sound Extension (A1J6)

To connect the sound extension to your machine, you'll need:

• the extension cable
• the A1J6 connector

Everything connects exactly as it did originally at A1J6.

⚠️ Important:

• make sure the cable color matches on both ends (main board side and extension side)
• make sure the connector arrow (circled in red) points toward the same-colored cable on both sides

FAQ — GottFA80_Plus V2 Full Integrated Sound Board

Does this board keep the original sounds and speech?
Yes. The GottFA80_Plus V2 Full follows the original ROMs and reproduces the game's audio modes (sound and speech) with behavior identical to the MA55, MA216, MA309, and MA490 boards.

Where do I set the audio DIP switches?
Settings are made via the SB Opt block (also labeled S3 on some versions). Exact values depend on the game — check the corresponding Gottlieb manual.

What if I have no sound at all?
First check the sound section's fuse. If it's fine, the amplifier (TDA7267) could be the cause. It's replaceable with an equivalent part.
