Please check the model before ordering
Every board is configured for one specific game. Select the model in the list that matches your machine exactly — a similar model will not work. If in doubt, get in touch before ordering: we will check compatibility with your machine free of charge.

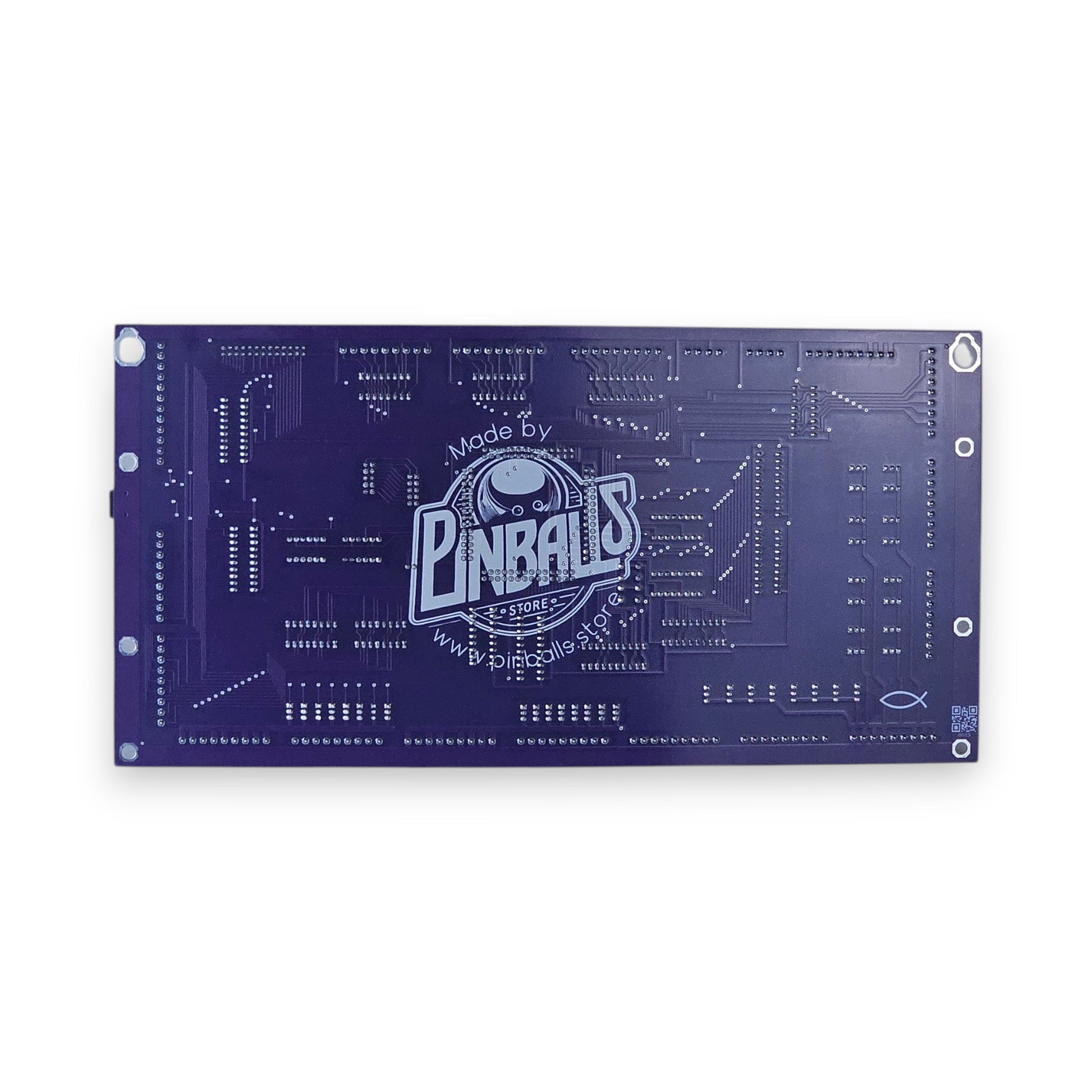

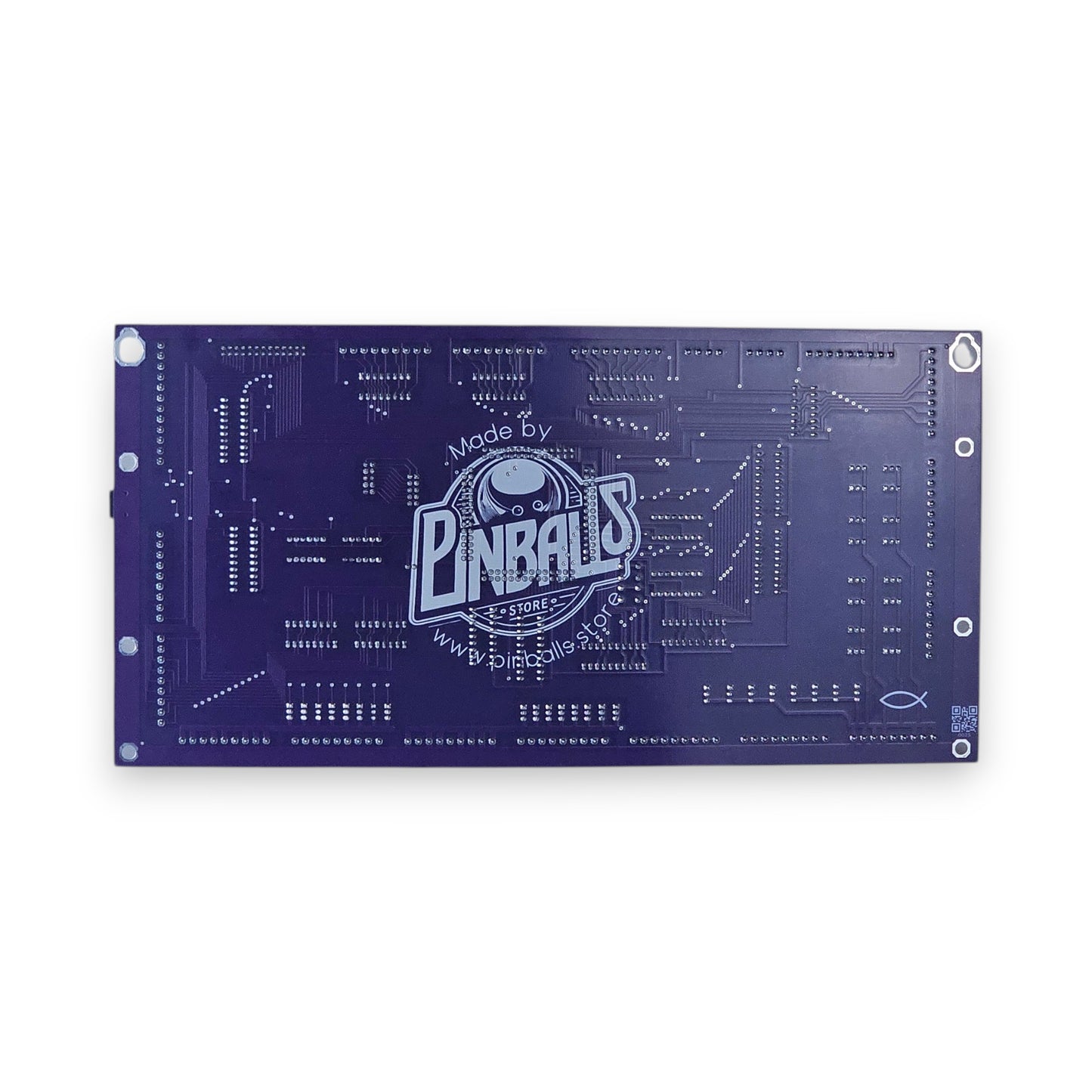

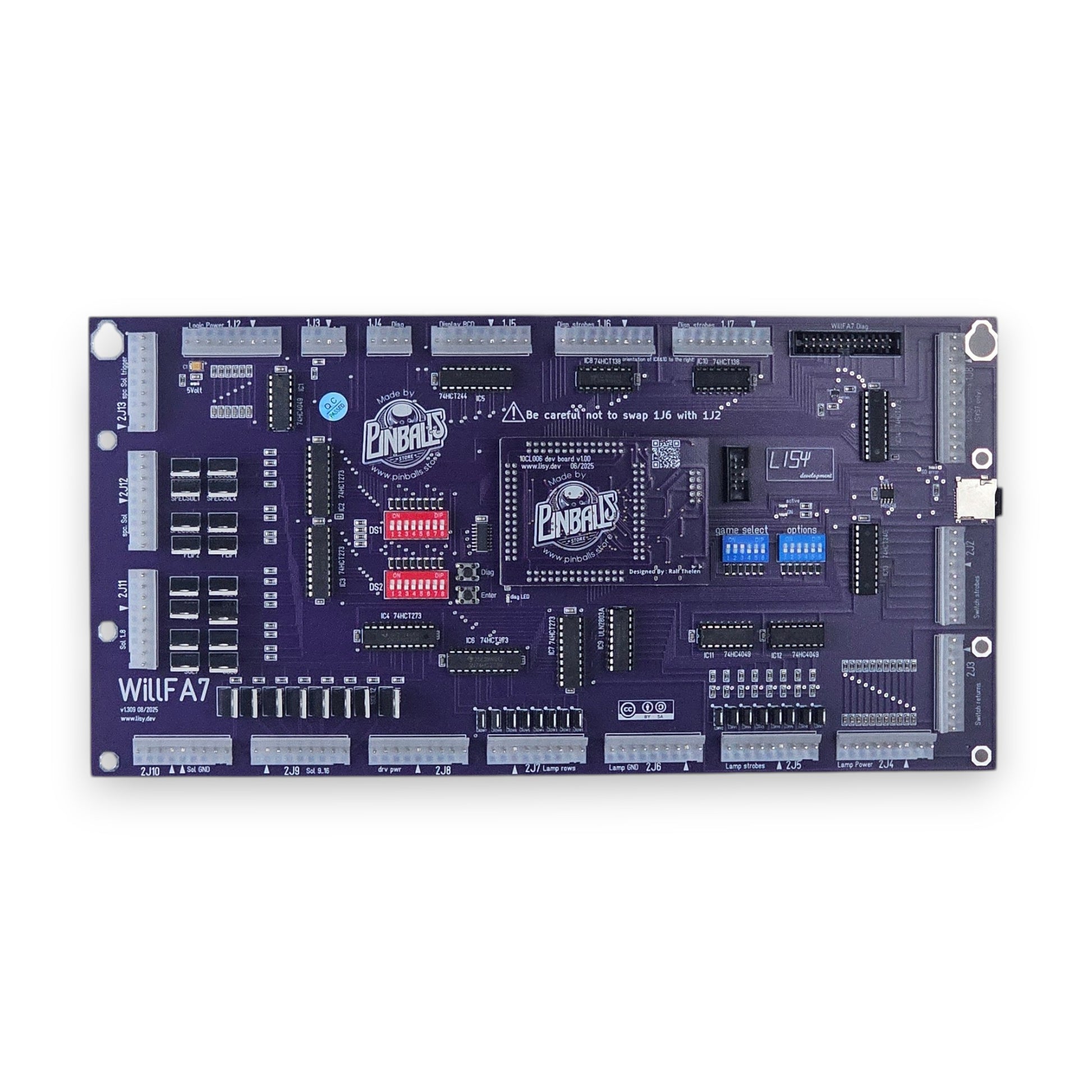

WillFA7 — 2-in-1 MPU + Driver replacement board (Williams System 3 to 7)
Modern FPGA-based 2-in-1 replacement board that brings Williams System 3, 4, 5, 6 and 7 pinball machines back to life, reliably and simply. The WillFA7 combines the MPU and Driver boards in one, runs the original ROMs interpreted in the FPGA, and adds protection against locked-on solenoids.
Key features
-
FPGA running the original ROMs — perfect fidelity to the original behaviour.
-
2-in-1 replacement — one board replaces both the MPU and the Driver on Williams System 3-7.
-
Solenoid protection — pulse management to prevent locked coils and overheating.
-
Freeplay available — enabled in the game menus via the coin-door buttons, like the original boards.
-
Ready to use — delivered preprogrammed.
-
Direct fit — mounts on the original standoffs and uses the original connectors, no modification.
Supported games (Williams System 3 → 7)
Hot Tip, Lucky Seven, World Cup, Contact, Disco Fever, Pokerino, Phoenix, Flash, Stellar Wars, Tri Zone, Time Warp, Gorgar, Laser Ball, Firepower, Blackout, Scorpion, Algar, Alien Poker, Black Knight, Jungle Lord, Pharaoh, Solar Fire, Barracora, Cosmic Gunfight, Varkon, Warlok, Time Fantasy, Joust, Firepower II, Laser Cue, Defender, Star Light.
Included
- 1 × WillFA7 board (2-in-1 MPU + Driver replacement)
-
6-month warranty (parts and labour) + 30-day money-back guarantee
- Free technical support (installation & troubleshooting)
