GottFA80_Plus Full — All-in-One CPU + Sound Board for Gottlieb System 80/80A/80B pinball
GottFA80_Plus Full — All-in-One CPU + Sound Board for Gottlieb System 80/80A/80B pinball
Low stock: 1 left
Couldn't load pickup availability
Please check the model before ordering
Every board is configured for one specific game. Select the model in the list that matches your machine exactly — a similar model will not work. If in doubt, get in touch before ordering: we will check compatibility with your machine free of charge.

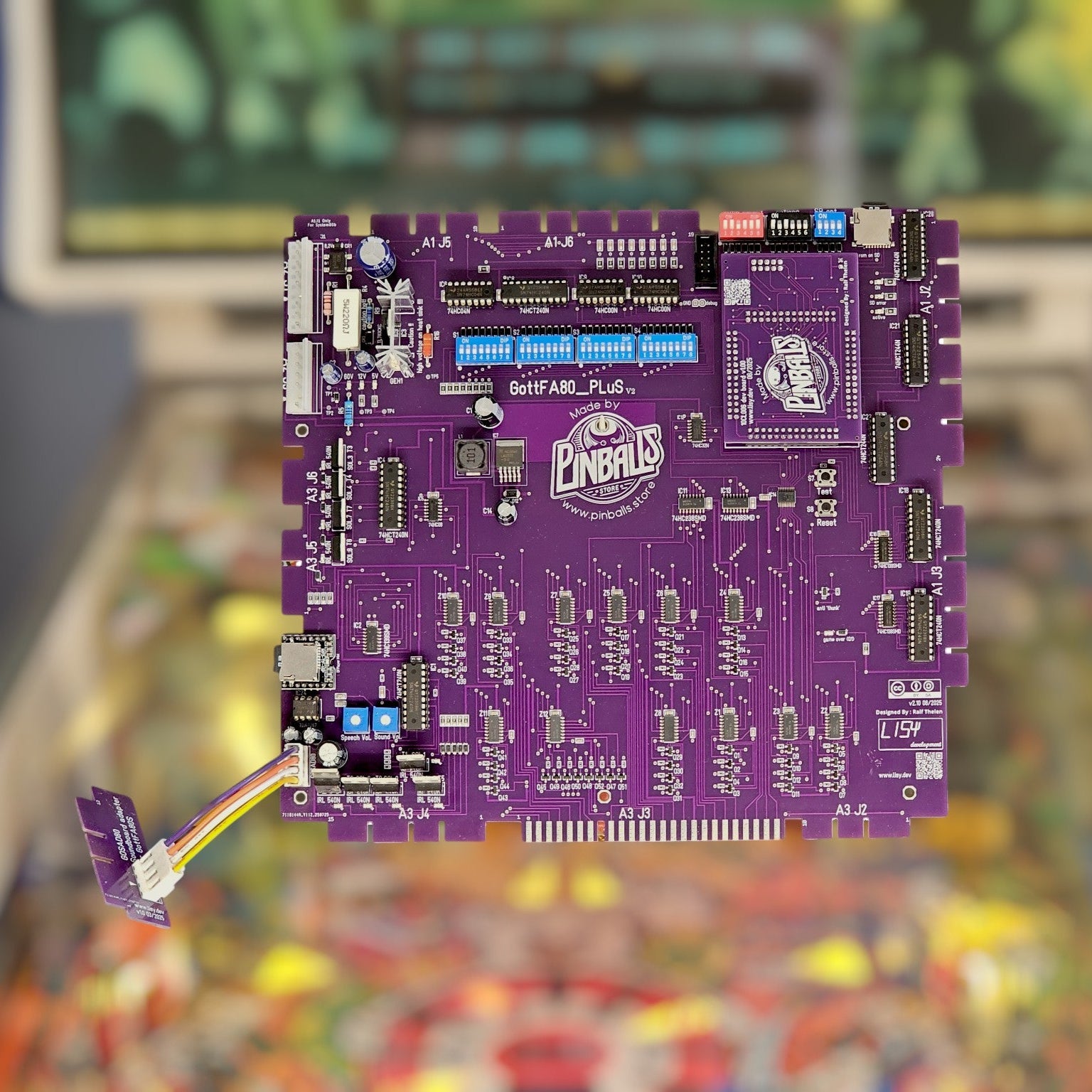

GottFA80_Plus V2 — Full version (CPU + integrated sound board)
All-in-one replacement CPU board with integrated sound for Gottlieb System 80, 80A and (audio on 3 titles) System 80B pinball machines. Replaces the MPU + Driver + power supply in one Plug & Play board, with true Freeplay, the original Gottlieb ROMs interpreted in the FPGA, and the original audio built in — no software emulation, no battery, scores saved.
Audio compatibility
- System 80: all games (including MA-216 speech games)
- System 80A: all games
- System 80B: Bounty Hunter, Chicago Cubs Triple Play and Tag Team only. For any other 80B, choose the Light version (no sound).
Key features
- Plug & Play — no A1-J4 / A3-J1 cable needed.
- Replaces MPU + Driver + power supply (System 80 & 80A).
- True Freeplay; reliable (no freeze, no battery, scores saved).
- Original ROMs interpreted in the FPGA; original audio integrated.
- Respects original functions: dipswitches, Slam control.
80B note: do not use the GottFA80_Plus integrated power supply on 80B games.
Included free · Smart FA module
FA·CONTROL: test your pinball from your phone
This board comes with FA·CONTROL, our Wi-Fi service tool. Open a web browser on your phone, tablet or laptop and test your machine part by part. No app to install, no extra hardware.
The real FA·CONTROL home screen: every test is one click away.
What you can do from your browser
Switch any lamp on or off to spot a dead bulb or a faulty lamp circuit.
Fire any coil on its own to check the coil and its drive circuit.
Watch every switch react live as you press it on the playfield.
Drive the score displays to check every digit and segment.
Play the game's sounds one by one to check the sound side.
Read the game's memory live while it plays, for advanced troubleshooting.
Load a names file for your game, so tests show real names instead of numbers.
Put the board on your home Wi-Fi and install new firmware versions.
Run the board's self-test in one click.
Switch test on a Gottlieb: press a switch on the playfield and watch it light up on screen.
How it works
- Power on the machine.
- Connect your phone or laptop to the board over Wi-Fi. Once the board is on your home Wi-Fi, you'll find it at pstore-1.local.
- Open FA·CONTROL and pick a test. FA·CONTROL takes control of the board while you test, so nothing fires on its own. Release control and the game plays again.
Stand at the playfield with your phone in hand and test one part at a time, instead of going back and forth to the test buttons in the coin door.
The Smart FA module (right), plugged on a GottFA80_Plus. It runs FA·CONTROL.
FA·CONTROL is our version of the LISY pinball service tool. It runs on the Smart FA, the FPGA module we design, make and assemble ourselves, and on its ESP32 Wi-Fi chip, and it speaks the protocol of the open LISY project (lisy.dev). Available on the GottFA80_Plus (Light and Full) and the WillFA7: free, included with the board, and improved through free updates.
Learn more
Included
- 1 × GottFA80_Plus V2 CPU board (Full — with integrated sound board)
- 6-month warranty (parts and labour) + 30-day money-back guarantee · Free technical support
